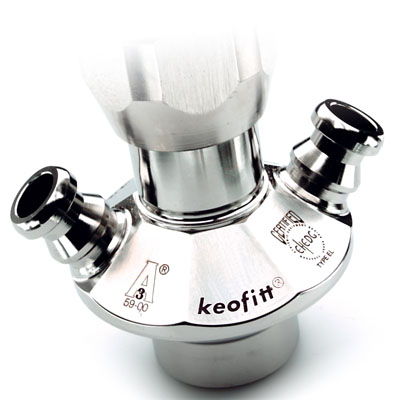

W9^TM Sampling Valve

The W9^TM is the standard Keofitt^® sampling valve, the valve others are measured to. Designed for sampling medium viscosity products, with particles up to 3 mm in diameter, if fitted with PTFE membrane and 2mm when fitted with silicone or EPDM membrane. The main product range W9^TM valves are used for products that have about 0-1,000cP in viscosity.

Sampling		Sterilization

The W9^TM valve is used in a range of applications, such as breweries, dairies, pharmaceutical and biotechnological industries, with wide range of products such as:

The W9^TM valves come with a variety of valve bodies and heads that fit most situation. The bodies come with welded or clamp connection, the heads come with diffrent operations and membranes.

Technical Data

Temperature range:	rubber membrane:	0 to 130ºC / 32 to 266ºF
	PTFE membrane:	0 to 150ºC / 32 to 302ºF
Pressure range:	Valve head type H, Q and N:	0 to 6 bar(g) / 0 to 87 psi
	Valve head type B:	0 to 15 bar(g) / 0 to 217 psi
Material:	Steel parts:	AISI 304/316L
	PTFE, Silicon and EPDM:	FDA approved
Dimensions:	Process dimension	In-/outlet dimension
body surface:	Inner surface Ra 0.5 mm / 0.00002 in	Electro polish outside
Material certificate:	3.1.B
