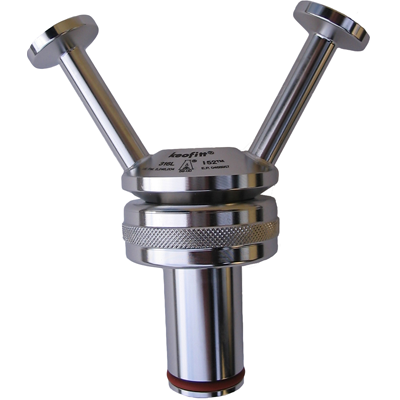

Ingold^TM "I" Sampling Valve

The Ingold^® sampling valve is designed for sampling medium viscosity products, with particles up to 1.2mm in diameter. The main product range are used in have about 0-800cP viscosity.

Sampling		Sterilization

The "I" valve is used with bioreactors for sampling of wide range of products.

The "I" valve comes with a mini try-clamp connections on in outlets. Valve heads come with diffrent operations and membranes.

General information on the Keofitt^® "I" sampling valve.

Temperature range:	PTFE membrane:	0 to 150ºC / 32 to 302ºF
	Rubber membrane:	0 to 130ºC/32 to 266ºF
Pressure range:	Valve head type H, Q and N:	0 to 6 bar(g) / 0 to 87 psi
Material:	Steel parts:	AISI 304/316L
	PTFE, Silicone and EPDM	FDA approved
Dimensions:	Process dimension	In-/outlet dimension
body surface:	Inner surface Ra 0.8 mm / 0.00003 in	Electro polish outside
Material certificate:	3.1.B
