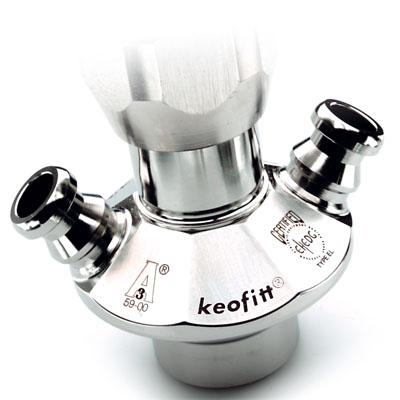

M4^TM Sampling Valve

The M4^TM sampling valve is the smallest Keofitt^® valve, designed for sampling of low viscosity products, with particles up to 1.5mm in diameter. The main product range the M4^TM valve is used for has 0-100cP viscosity.

Sampling		Sterilization

The M4^TM valve is used in a range of applications such as breweries, dairies, pharmaceutical and biotechnological industries, with wide range of products such as:

Water / 水
Milk / 奶品
Medical solutions / 藥品溶劑
Filtered beer / 啤酒

Perfume / 芳香劑
Olive oil / 橄欖油
Fermented products / 發酵產品
Fruit juice / 果汁

The M4^TM valves come with a variety of valve bodies and heads that fit most situation. The bodies come in welded or clamp connection, the heads come with different types and membranes.

Technical Data

Temperature range:	rubber membrane:	0 to 130ºC / 32 to 266ºF
	PTFE membrane:	0 to 150ºC / 32 to 302ºF
Pressure range:	Valve head type H, Q, K and N:	0 to 6 bar(g) / 0 to 87 psi
	Valve head type B:	0 to 15 bar(g) / 0 to 217 psi
Material:	Steel parts:	AISI 304/316L
	PTFE, Silicon and EPDM:	FDA approved
Dimensions:	Process dimension	In-/outlet dimension

body surface:	Inner surface Ra 0.5 mm / 0.00002 in	Electro polish outside
Material certificate:	3.1.B
