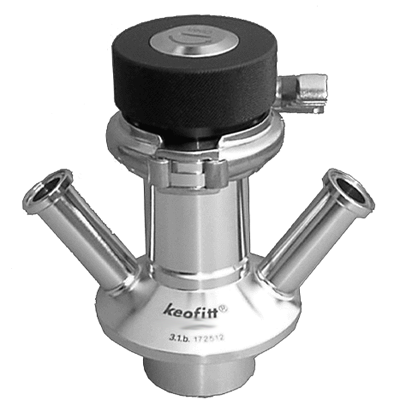

W15^TM Sampling Valve

The W15^TM sampling valve is designed for sampling high viscosity products or for large samples of medium or low viscosity products, with particles up to 8mm in diameter. The main product range the W15^TM is used in have about 0-50,000cP viscosity.

Sampling		Sterilization

The W15^TM valve is used in a range of applications, such as breweries, dairies, pharmaceutical and biotechnological industries, with wide range of products such as:

The W15^TM valves come with a variety of valve bodies and heads that fit most situation. The bodies come with welded or clamp connection, the heads come with pneumatic or manual operations and PTFE membrane.
　

General info on the Keofitt^® W15^TM sampling valves

Temperature range:	PTFE membrane:	0 to 150ºC / 32 to 302ºF
Pressure range:	Valve head type H and N:	0 to 6 bar(g) / 0 to 87 psi
Material:	Steel parts:	AISI 304/316L
	PTFE	FDA approved
Dimensions:	Process dimension	In-/outlet dimension
body surface:	Inner surface Ra 0.8 mm / 0.00003in	Electro polish outside
Material certificate:	3.1.B
