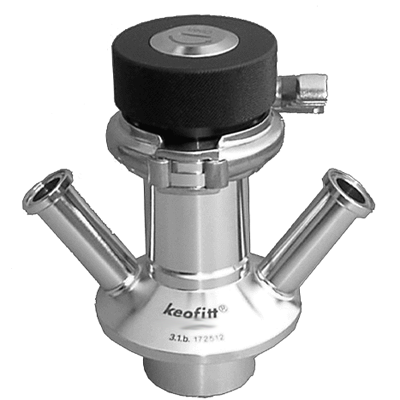

W25^TM Sampling Valve

The W25^TM is the largest Keofitt^® sampling valve. Designed for sampling of very high viscosity products or large samples of high viscosity products, with particles up to 17mm in diameter. The main product range the W25^TM is used in has 0-250,000cP viscosity.　

Sampling		Sterilization

The W25^TM valve is used in a range of applications such as breweries, dairies, pharmaceutical and biotechnological industries, with wide range of products such as:

The W25^TM valves come valve body for tank welding and the heads come with pneumatic or manual operation and a PTFE membrane.
　

General info on the Keofitt^® W25^TM sampling valves

Temperature range:	PTFE membrane:	0 to 150ºC / 32 to 302ºF
Pressure range:	Valve head type H and N:	0 to 6 bar(g) / 0 to 87 psi
Material:	Steel parts:	AISI 304/316L
	PTFE	FDA approved
Dimensions:	Process dimension	In-/outlet dimension
body surface:	Inner surface Ra 0.8 mm / 0.00003 in	Electro polish outside
Material certificate:	3.1.B
