Sampling Systems

With the Keofitt^® remote control systems, manual, semi-automatic and automatic. You can easily take samples without accessing nad manually operating the valve itself.

All the systems can be connected to all sampling valves fitted with pneumatic actuators. The system is based on Keofitt’s patented sampling valve, is guaranteed hygienic, and has a very practical design.

Temperature range:	Depends on choice of valves (membranes) used with the system
	Silicone / EPDM	0 to 130ºC / 32 to 266ºF
	PTFE	0 to 150ºC / 32 to 302ºF
Pressure range:	M4; W9; "I" sampling valve:	4-6 bar(g) / 58 to 87 psi
	W15 sampling valve:	Minimum 6 bar(g) / 87psi
	W25 sampling valve:	5-7 bar(g) / 73 to 101 psi
Material:	Case:	AISI 316L
	Membrane PTFE	FDA approved
Electricity:	Only automatic systems	220V - 50Hz
	On request available with:	110V - 60Hz
Steam supply needed:	For sterilization	121ºC 2bar(g) / 250ºF 29 psi

The Remote control consists of a control box that uses compressed air to open close for sampling and steam.

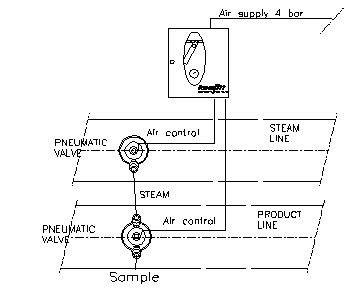

Remote control unit setup.

The Remote control units can be used everywhere access to valve is difficult. In a vide range of business areas, such as breweries, dairies, pharmaceutical and biotechnological industries, with wide range of products such as:

Milk / 奶品
Beer / 啤酒
Creams and lotions / 乳液及化妝塗劑
Medical solutions / 藥品溶劑
Ketchup / 蕃茄醬

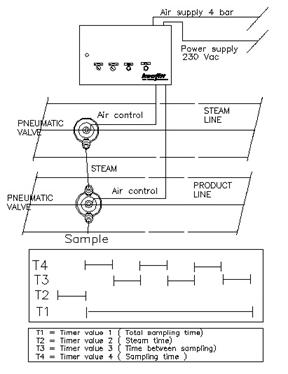

The semi-automatic system take representative samples in-line over a specified period of time (average sample). consists of a control unit with adjustable timers. These timers control pilot valves built into the cabinet and can be set manually from 3 seconds to 300 hours.
　

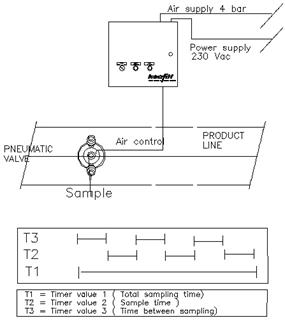

With Sterilization	Without Sterilization

The Semi-Automatic sampling systems are used to take in-line sample over a specific period of time (average sample). In a vide range of business areas, such as breweries, dairies, Beverage and other fluid industries, with wide range of products such as:

Milk / 奶品
Beer / 啤酒
Sodas / 蘇打水
Ketchup / 蕃茄醬
Orange Juice / 柳橙汁

Automatic systems are used to take automatic aseptic samples. These are user specified and constructed and designed for requested needs. The Automatic sampling system is mainly used in Breweries.
