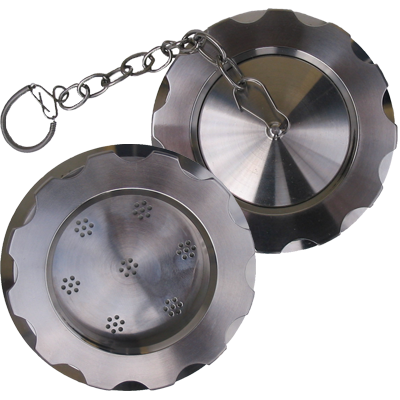

Micro Port Sampling Valve

The Keofitt^® Micro Ports^TM are designed to take samples using a hypodermic needle or a syringe, with minimum risk of contamination. Designed for sampling low viscosity products with microscopic particles in the fluid. The main products Micro Ports^TM are used for have about 0-50cP in viscosity.

Sampling

The Micro Ports^TM are used in a range of business areas, such as breweries, dairies, pharmaceutical and biotechnological industries, with a wide range of products such as:

Water / 水
Milk / 奶品
Medical solutions / 藥品溶劑

Filtered beer / 過濾後的啤酒
Perfume / 芳香劑
Olive oil / 橄欖油

The Micro Ports^TM come with a variety of connection options that fit most situation.

General info on the Keofitt^® Micro Ports^TM

Temperature range:	EPDM Septum	0 to 110ºC / 32 to 230ºF
Pressure range:	All Micro Port^TM	0 to 6 bar(g) / 0 to 87 psi
Material:	Steel parts:	AISI 304/316L
	EPDM	FDA approved
Type:	Multi Micro Port	Micro Port

body surface:	Inner surface Ra 0.8 mm / 0.00003 in	Electro polish outside
Material certificate:	3.1.B
