德國 Dr. Thiedig 釀酒工業用製程線上自動分析儀器產品系列

The product range analysis technique of Dr. Thiedig is based historically on co-operation with the Federal Institution for material testing in Berlin and the companies hard man & brown in 50 iger the years. Until today Dr. Thiedig supplies portable and festinstallierte oxygen pure analyzers for the analysis of high-purity water and the oxygen monitoring in beverages world-wide. The name Digox is considered world-wide as the reference in oxygen pure analytics. 手提式啤酒溶氧分析儀型號: Digox 6 >

The measuring procedure of the oxygen analyzers of Dr. Thiedig be based on the electro-chemical reduction or oxidation of the appropriate measuring component and is converted in open three Elektrodenanordnung, with which the test electrode of the material under test one flows against directly. This world-wide singular measurement principle is clearly superior to other measuring procedures concerning the measuring accuracy, the reproducibility, response time and the wartungsfreundlichkeit. 線上啤酒溶氧測定儀型號: Digox 5 S >

A modification of the measuring procedure makes possible also the instrumentation collection of other components such as ozone, chlorine, hydrazine, cyanide and Peroxyessigsaeure. As addition of the oxygen measurement in the beverage industry the equipment family Digox was supplemented around a CO 2 measuring system. This measuring system uses the infrared absorption of CO 2 for the determination of the CO 2 of partial pressure in beverages. Digox CO 2 is the world-wide only continuously measuring CO 2 - measuring instrument. 線上啤酒 CO2 測定儀型號: Digox 5 CO2 >

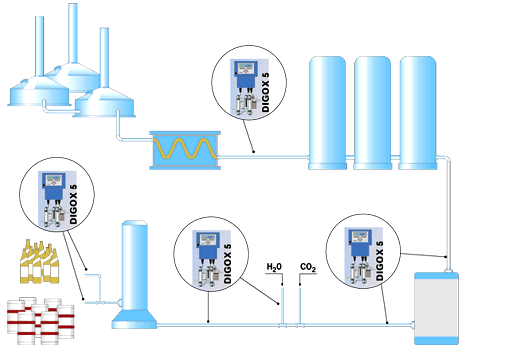

Digox - the proven oxygen pure analyzer DIGOX 5 is our answer to ever higher requirements to the accuracy of measurements. Measuring accuracy and reliability are in the age that ISO 9000 the most important characteristics of a modern analyzer. 　 The durable Thiedig sensor is constantly operational and almost maintenance-free. The sensor measures drift-free and supplies therefore exact and reliable measured values. 　 Portable oxygen meter Digox 6 for the breweries >

Measurement principle

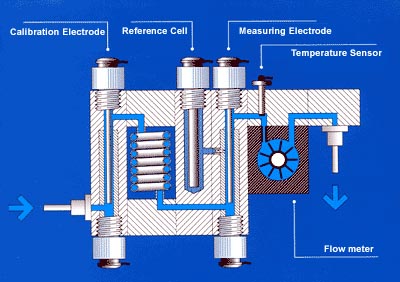

The measurement principle of the DIGOX 5 is based on the cathodic reduction of the measuring component O ₂at a polarized electrode. The Thiedig sensor uses this measurement principle by means of a potentiostatic regulated arrangement of three electrodes.

This arrangement makes it possible in contrast to other measuring procedures to use the sample (material under test) than electrolyte and a measurement directly, without accomplishing diaphragm.

The diaphragmless sensor has many advantages opposite the diaphragm-covered sensors:
·The sensor works drift-free and reliably.
·The response time is extremely short by the direct contact with the material under test.
·The system permits, contrary to diaphragm sensors, an accurate temperature compensation within a wide range.
·System-dependently there is no zero drift.
The messempfindlichkeit of the sensor is at any time examinable.
　

Each electro-chemical sensor must be calibrated. Our Thiedig sensor is the only sensor, that
·without interruption of the measurement
·in the measuring medium
·with one calibration point within the measuring range
to be calibrated can.

On-line Digox 5 KS with Besalzungszelle for the employment in power stations >

The hydrazine hydrate is often used for oxygen connection in the boiler enterprise, into heating systems and other corrosion endangered plants. For the correct employment of this substance it is useful in each case to know the current concentration of the hydrazine in solution continuously. The bases of the electro-chemical hydrazine measurement in the 60's in the Federal Institution for material testing in Berlin by Dr. Teske one compiled.
The analyzer manufactured by us after these realizations is very similarly developed the oxygen analyzer. The calibration takes place via iodometric titration.

In numerous power stations, in particular nuclear power stations the hydrazine measuring instruments of our house worked in the meantime.

For the continuous monitoring of ozone and chlorine in drinking and sewage systems are outstanding suitable the analyzers of the Digox offer - row.
The following applications are typical:
- monitoring of the ozonization/chlorination in the water purification
- monitoring of the ozonization/chlorination in the waste water treatment
- continuous monitoring on remainder-ozone-pure in the industrial water
The devices work in the bypass procedure.

The measurement principle uses the cathodic reduction oxidizing of a working measuring component. This electro-chemical process takes place at a polarized precious metal electrode according to the principle of the Amperometrie. The devices work after the open three-electrode measurement principle with a Potentiostaten. The measuring signal is drift-free and independent thereby of the composition of the material under test. The influence of temperature and flow of the material under test is compensated automatically.

The devices are calibrated by means of a calibration solution or on the basis a reference measurement.

On-line hydrazine and Ozone measuring instrument Digox 5 hydrazine / Ozone >

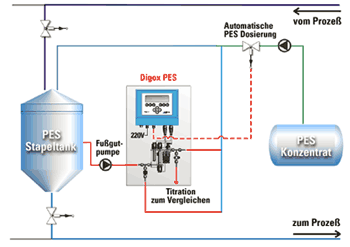

The new, patented *) measuring instrument Digox 5 PES is a continuously measuring system for the monitoring and dosage of PES products in cleaning solutions. It helps substantially to guarantee the effect of the disinfection steps in CIP plants. Complex control of the cleaning equipment by intermittent laboratory methods is void.

At the same time Korrossionsschaeden are prevented by overdosing. The economy of the purification process is ensured and in addition the environment is relieved.

During the rinsing procedure the phase separation can be registered also with the Digox 5 PES.

Due to the insensitivity opposite Tensiden the system for the cleaning of plastic bottles is particularly suitable.

For the detection of PES products the durable Thiedig sensor - an open three Elekroden system - is used. Contrary to other measuring procedures with the Thiedig sensor the material under test than electrolyte is used - a diaphragm is void. Therefore the response times of the analysis system are extremely short, the results of measurement are stable and drift-free. There is also practically no cross-axis sensitivity to other oxidizing agents. The sensor is maintenance-free, since no electrolyte is used.
