Digox 6 is a new concept in oxygen measurement in beverage
production.
Its all-new electronics open up numerous possibilities for
oxygen
measurement and data processing in the laboratory and in production. The tried and tested
measuring method employing an open electrode is reliable, exact and maintenance-free.
The automatic calibration system, which, in just a few
seconds, can check and correct the measuring sensitivity of the sensor, provides the user with absolute
dependability for the accuracy of measurement values at any time.
The Digox 6 makes possible both individual or test
measurements and continuous monitoring of your plant.
The Thiedig sensor - The intelligent measuring
system
- The Thieidg sensor works on the basis of the cathodic
reduction of oxygen
at a polarised electrode.
- The Thiedig sensor makes use of this principle by means of
the
potentiostatic arrangement of three electrodes.
- Unlike in other measuring methods the sample liquid (beer or
other
beverage) is itself used as an electrolyte, and the measurement is
performed directly
without the need for a membrane.
- This results in very fast response times. If oxygen
penetration occurs,
then the measuring cell is automatically rinsed free. The oxygen level
does not need to
be reduced in the cell.
The advantages :
- The sensor works drift-free and is reliable
- Extremely short response time due to direct contact with
the sample
- Unlike membrane sensors the system allows exact temperature
compensation over a wide range
- The nature of the system means that there is no zero-point
drift
- The sensitivity of the sensor can be checked at any time
without
interrupting measurement
Accuracy at all times
The advantages of Thiedig active
calibration
- The automatic calibration provides you with complete
dependability in the
shortest possible time
- The measurement values can be double-checked by
re-calibrating at any
time without interruption to measurements
- Since calibration takes place in the measurement sample,
there are no
external effects from any other substance
- The data are stored automatically and can be recalled and
recorded
DIGOX 6 - The ideal instrument for process
control
The Digox 6 is the ideal instrument for trace oxygen
monitoring as part of overall process control. It is ready at all times without long preparation or run-in
times.
The integrated automatic calibration allows the checking of
the measuring sensitivity during the first measurement and so ensures the total dependability
of the measurement data.
The addition of the touch memory system and the new data
logger enables clear, unmistakable allocation of the oxygen values and the accompanying measurement
conditions to the respective measuring point,
date, time and process controller. The Digox 6 can be
deployed at any point of the production process.
Measurements in degasified water are possible as measurements
in beer wort or unfiltered liquid.
A high-power, nickel-metal hybrid accumulator battery allows
for more than 8 hours of independent operation.

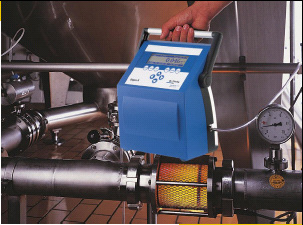

Information required about each measurement process is
provided via the unit's clearly laid out display. straightforward messages provide information about the
operating state or problems, so that exact measurements are guaranteed at any time. As an all-round,
portable instrument the Digox 6 is the ideal control instrument for checking permanently installed
equipment, or as a variably employed solution for small plants, or else as a substitute for malfunctioning
permanent oxygen detectors.
In this application, the power supply comes via the mains
power adapter, without affecting the capacity of the accumulator.
DIGOX 6 - Measuring instrument plus
intelligent software

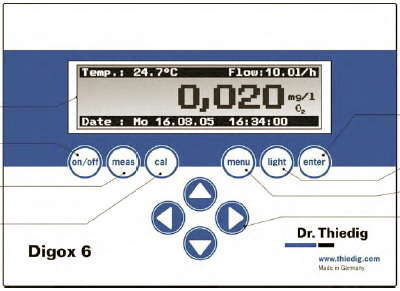

The Digox 6 features a high-powered electronic control unit.
The self explanatory menu operation and straightforward graphic display make it simple and convenient
to work with the new instrument.
All parameters relevant for the measuring, as well as the
date and time, are displayed simultaneously.
Together with our new Digox WIN software and touch memory
system, the new electronic unit provides a variety of new applications.
All these features mean that the Digox5 is able to
measure, record and sort data.
The touch memory system
"Touch-memories" are small data stores that can be programmed
individually.
Made of stainless steel, they are no larger than a small
coin. They can be attached anywhere and require no maintenance.
Touch-memories enable the individual identification of each
measuring point.
Digox 6 can store each identification code in its data
logger, and thus be able to assign each measurement to a particular measuring point. Mix-ups are therefore
impossible.
The time and date, as well as the time of previous
measurements can be checked.
DIGOX WIN
Digox WIN is the PC user software for analysing the
measurements and for diagnosis of the measuring instrument.
Digox WIN runs under WindowsTM and meets all the
requirements of modern
data
processing in the laboratory :
- Read-outs from the data logger
- Conversion to ExcelTM
- Presentation of the data as tables or graphs
- Simultaneous online presentation and logging of
measurements
|
