可選傳感器參數: 電壓: 軟体可選 3 - 12 V.
電流: 150mA @ 3V -
100mA @12V.
熱機時間:
0 - 25 秒.
增益:
1 - 4.
輸入: 輸入選擇:
Switch;
Differential Voltage, Differential
Current or Dual Current.
範圍:
0 - 5V or 0 - 25 mA.
解析度:
12 bit.
取樣週期:
1000 Hz (bursts); groups of bursts re-averaged @ 30 Hz.
輸出:
Two, Open Drain, up to 200 mA @ 15V max,
(Used primarily for gain selection).
儲存:
Non-Volatile, 1280 Kb,
(9,999 records, 1 record = sensor reading, date, time and location).
電流消耗:
Computer: <=45 mA (at full charge). Sleeping <20 uA LCD
Backlight: Full power ~ 30 mA. Low Power ~ 15 mA
電池:
Type: NiMH rechargable, 4.8 volts, 4,000 mA/Hr.
Life: Continuous up to 70 hours (dependant on sensor/settings)
Note:
When using the DataBank with the C-sense, it
isrecommended that the voltage be set to 6 and the warm-up
time be set to 3 minutes. Using these settings with a 5 minute
sampling
interval, you can expect a fully charged
DataBank to collect
300 samples.
充電:
~3 hours (for a fully discharged battery;
ambient @ 25 degrees C)
通訊介面:
USB.

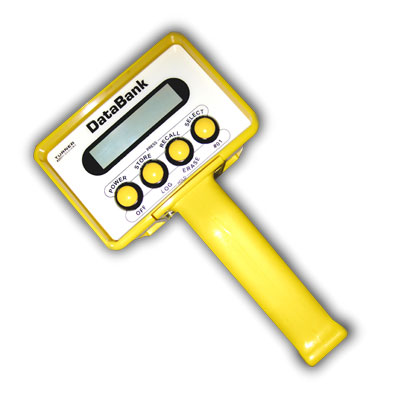

手持式
Databank 儀器尺寸:
主機 117 x 81 x 86mm (WxHxD),
握把長度: 122mm.
儀器重量: 0.76 Kgg

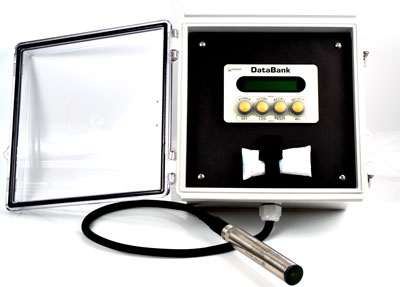

固定式
Databank 儀器尺寸:
主機 210 x 210 x 130mm (WxHxD).
儀器重量: 1.56 Kgg
外殼防護: IP 66, NEMX 4X. |
|
