儀器概述

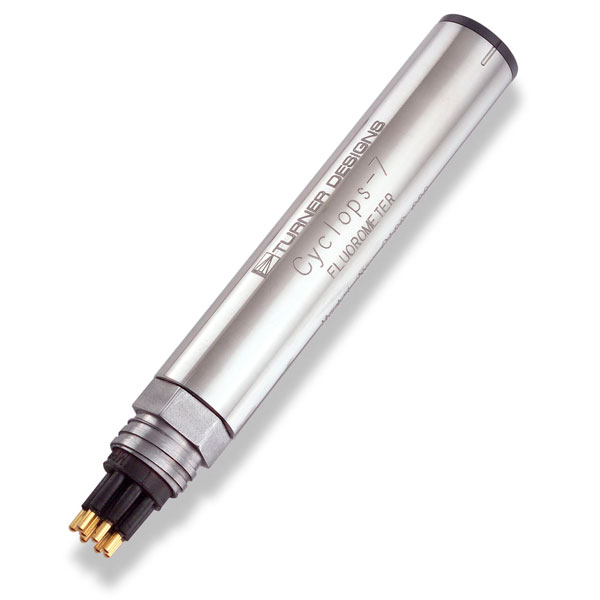

TURNER DESIGNS CYCLOPS-7 潛水型螢光計
(Submersible Fluorometer)
之設計製作綜合了多功能操作平台, 高性能規範須求, 紮實的傳感器結構以及低於傳統式潛水型螢光計的平實價格等許多優點.
CYCLOPS-7 結合上述優勢與吸引力因此廣為海洋學, 淡水和染色追蹤工程所愛用.
CYCLOPS-7
螢光傳感器儘管結構細小, 但是對於量測的性能絕不妥協,
包括靈敏性和動態的範圍的折衷. 極優異的混濁度消除功能確保在各種嚴格的環境條件中發揮最高的偵測極限.
CYCLOPS-7 螢光傳感器需要外部電力來源, 作為一個標準
0 ~ 5V 輸出電壓提供使用者外部資料記錄器.
具有三段使用者可自由設定的動態量測範圍提供
0.03 到
500 μg/L. 葉綠素偵測以及
0.04 到 1000 ppb. 若丹明WT偵測.
CYCLOPS-7 螢光傳感器由原廠提供包括葉綠素a和若丹明WT偵測 ,
或者是客戶指定的版本可特別製造.
穩定性的核對
TURNER DESIGNS
唯一設計的次級標準校正器提供傳感器的正確操作及查核的一項最簡單和快速的方法. 次級標準校正器與傳感器搭配使用時能夠調整傳感器所產生的輸出電壓,
通常與已知的葉綠素或染色劑相符合的電壓.
CYCLOPS-7
螢光傳感器具有2呎長的電纜連結辮附件提供給電腦能夠獨立操作和測驗. 電纜連結辮允許一個電力供應器的聯結; 閱讀傳感器輸出電壓,
傳感器增幅調整.
Cyclops-7 Sensor Specification,
C7螢光感應器規格, 最低偵測極限,
線性測定範圍
Application
|
Min. detection limit
最低偵測極限
|
Linear range
線性
測定範圍
|
Linearity: 0.99R2
|
CDOM/FDOM |
0.1 ppb*
0.5 ppb* |
0-1,500 ppb*
0-3000 ppb* |
Chlorophyll a, in-vivo Blue Excitation |
0.03 μg/L |
0-500 μg/L |
Chlorophyll a, in-vivo Red Excitation |
0.3 μg/L |
> 300 μg/L |
Fluorescein Dye |
0.01 ppb |
0-500 ppb |
Oil - Crude |
0.2 ppb* |
0-1,500 ppb* |
Oil - Refined |
10 ppb** |
0-7,000 ppb** |
Optical Brighteners |
0.6 ppb* |
0-2,500 ppb* |
Phycocyanin
(Freshwater Cyanobacteria) |
2 ppbpc |
0-4,500 ppbpc |
Phycoerythrin
(Marine Cyanobacteria)
|
0.1 ppbpe |
|
PTSA Dye
|
0.1 ppb*** |
0 - 650 ppb***
|
Rhodamine WT
|
0.01 ppb |
0-1,000 ppb
|
tryptophan for wastewater monitoring
|
3 ppb |
0-5,000 ppb
|
Turbidity
|
0.05 NTU |
0-1,500 NTU
|
* 1,5 Napthalene Disulfonic Disodium Salt
** Quinine Sulfate
*** PTSA (1,3, 6, 8 - Pyrenetetrasulfonic Acid Tetrasodium Salt)
**** BTEX (Benzene, Toluene, Ethylbenzene, Xylenes)
PC Phycocyanin pigment from Prozyme diluted in Deionized
water
PE Phycoerythrin pigment from Prozyme diluted in Deionized
water |
ACCESSORIES FOR CYCLOPS-7
CYCLOPS-7 Fluorometer Features and Benefits /
CYCLOPS-7
潛水型螢光計之特性與優點:
FEATURES |
BENEFITS |
Ultra-compact size |
CYCLOPS-7 can be easily added to typical
multiparameter systems within existing space constraints |
Measurement specifications equal to highest performance field
fluorometers |
Measurement capabilities are not compromised by using the CYCLOPS-7
compact sensor |
Low power consumption compared to
traditional field fluorometers; <300 mW typical |
In CTD/AUV applications, you can choose
between a smaller battery pack or longer operation on each battery
charge |
Real-time
analog output voltage |
Measurements can be made at any frequency and interval, as determined
by an external data logger |
Affordable price/excellent value |
Price barrier has been significantly
lowered for adding a fluorometer to existing monitoring platforms |
Environmental Characteristics |
|
Temperature Range:
Ambient: 0 to 50 deg C
Water Temp: -2 to50 deg C. |
Depth Rating:
600 meters |
Physical Dimensions |
|
Length x Diameter:
4.3" x 0.9", 14.0 x 2.2 cm. |
Weight:
5.0 oz, 160 gm. |
|
