Up
to 100 tons Laboratory Presses and Accessories
|
Auto series benchtop presses, 14 - 48 tons
|
|
Monarch floor standing presses, 30 -
100 tons
|
|
Press for plastic ASTM testing
|
|
Proppant presses
|
|
Heated manual benchtop presses 7.5 - 30 tons
|
|
Manual benchtop presses 12 - 30 tons |
|
Pneumatic and laminating presses |
|
Pellet presses and accessories
|
|
|
|
|
Laboratory Presses Applications |
|
|
Materials research:
ceramics, composites,
construction materials, cosmetics, drugs, |
|
pharmaceuticals, powder metals, printed circuit
boards, rubber, silicone and other elastomers, soil,
thermoplastic resins and thermosets |
|
|
Quality
& performance testing of physical properties: compression
strength, flexural strength, shear strength, |
|
flow and color
dispersion. |
|
|
Laboratory
testing: ASTM test plaque or bar molds
for polyethyene and polypropylene. |
|
|
Laminating: credit cards, ID cards, plaques and
printed circuit boards. |
|
|
Other applications: composite molding,
compression molding, crushing, encapsulation, extrusion,
forming, inert pressing, |
|
producing KBr pellets for IR
spectroscopy, metal forming, insert molding, oil extraction,
pelletizing, specimen preparation, splice molding, splitting
chilled oils, transfer molding, and vulcanizing rubber stamps. |
|
|
 |
|
|
 |

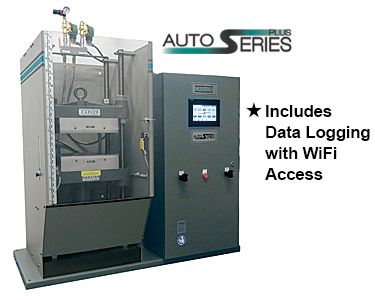

Auto
series Benchtop Presses, 14 to 48 tons capacity
桌上自動型壓片機 14 - 48 噸 |
Carver Auto Series Plus automatic laboratory presses feature a large 7” color touch screen operator interface, enhanced platen temperature control with auto-tuning, ramp heating capability, storage of up to 250 recipes and real-time trending of force and temperature. Optional features include seven day timer for auto platen heat-up, data logging for cycle parameters, and access to logged data through Wi-Fi. 48 ton models include an integral wrap-around floor stand.
Auto Series Plus press models are available with 15 to 48 tons of clamping force and 6" x 6" to 19” x 19” platens. These benchtop presses are used in quality control and research and development for test sample preparations, destructive testing, molding, laminating and fluid extraction. See below table for press specifications.
|
|
| Model |
Catalog Number |
Max. Clamp Force, Tons
(lb) |
Heated Platens |
Platen Size
(in) |
Ram Stroke (in) |
Daylight Opening (in) |
Overall Size
W x D x H (in) |
Weight (lb) |
Voltage Supply |
| Two-Post Model |
| Auto C-PL |
3888 |
15
(30,000) |
No |
6 x 6 |
6 |
.75 to 16 |
42.50 x 24 x 45 |
625 |
115/230
1 phase |
| Auto C-PL,H |
3889 |
15
(30,000) |
Yes |
6 x 6 |
6 |
0 to 13 |
42.50 x 24 x 45 |
670 |
115/230
1 phase |
| Auto M-PL |
3890 |
25
(50,000) |
No |
9 x 9 |
6 |
.75 to 16 |
42.50 x 24 x 45 |
625 |
115/230
1 phase |
| Auto MH-PL,H |
3891 |
25
(50,000) |
Yes |
9 x 9 |
6 |
0 to 12 |
42.50 x 24 x 45 |
690 |
230
1 phase |
| Four-Post Model |
| AutoFour/1512-PL |
3892 |
15
(30,000) |
No |
12 x 12 |
6 |
1 to 17 |
50 x 29.25 x 46 |
995 |
115/230
1 phase |
| AutoFour/1512-PL,H |
3893 |
15
(30,000) |
Yes |
12 x 12 |
6 |
0 to 12 |
50 x 29.25 x 46 |
1,200 |
230
1 phase |
| AutoFour/1515-PL |
4530 |
15
(30,000) |
No |
15 x 15 |
6 |
8 to 17 |
50 x 29.25 x 46 |
1,500 |
115/230
1 phase |
| AutoFour/1515-PL,H |
4531 |
15
(30,000) |
Yes |
15 x 15 |
6 |
2 to 12 |
50 x 29.25 x 46 |
1,775 |
230
1 phase |
| AutoFour/3012-PL |
3894 |
30
(60,000) |
No |
12 x 12 |
6 |
1 to 17 |
50 x 29.25 x 46 |
995 |
115/230
1 phase |
| AutoFour/3012-PL,H |
3895 |
30
(60,000) |
Yes |
12 x 12 |
6 |
0 to 12 |
50 x 29.25 x 46 |
1,200 |
230
1 phase |
| AutoFour/3015-PL |
4532 |
30
(60,000) |
No |
15 x 15 |
6 |
8 to 17 |
50 x 29.25 x 46 |
1,500 |
115/230
1 phase |
| AutoFour/3015-PL,H |
4533 |
30
(60,000) |
Yes |
15 x 15 |
6 |
2 to 12 |
50 x 29.25 x 46 |
1,775 |
230
1 phase |
| 48 Ton Auto Series - Design includes wrap around Floor Stand |
| AutoFour/4815-PL |
5400 |
48
(96,000) |
No |
15 x 15 |
4 |
6 to 19 |
55 x 36 x 72 |
3,074 |
115/230
1 phase |
| AutoFour/4815-PL,H |
5401 |
48
(96,000) |
Yes |
15 x 15 |
4 |
0 to 15 |
55 x 36 x 72 |
3,384 |
230
1 phase |
| AutoFour/4818-PL |
5402 |
48
(96,000) |
No |
18 x 18 |
4 |
6 to 19 |
55 x 36 x 72 |
3,074 |
115/230
1 phase |
| AutoFour/4818-PL,H |
5403 |
48
(96,000) |
Yes |
18 x 18 |
4 |
0 to 15 |
55 x 36 x 72 |
3,444 |
230
1 phase |
| Available Options |
| Item Description |
Catalog # |
| Floor Stand: 51" L-R x 23.5" F-B x 24" H, Wt. 385# for all standard Auto Series Presses (Excluding 48 Ton Models) |
223321D |
| Floor Stand: 51" L-R x 23.5" F-B x 24" H, Wt. 385#, w/6" Casters for all standard Auto Series Presses (Excluding 48 Ton Models) |
223319C |
| Auto cooling option; including manifolds and hoses |
List separate when requesting quote or placing order. |
| Temperature Calibration by instruments traceable to NIST on heated presses |
1525.00003 (sold per controller) |
| Force Calibration Certificate using equipment traceable to NIST |
1525.00001 |
|
Additional kits available |
Consult Factory for details |
|
|
 |
|
|
|
Monarch Hydraulic Lab
Presses 30, 50, 75, 100 ton
專業型壓片機
30 - 100 噸 |
|
|
| Carver's Monarch laboratory presses with integral
hydraulic system and high technology options are based
on standard production press models adapted to precision
laboratory requirements. |
Recommended for testing or research, compacting.,
molding rubber or plastic, laminating and assembly where
stripping pressure is required. |
Optional equipment includes electrically heated
platens to 600, 800 or 1200°F, with digital temperature
controllers. low pressure system, pressing speed control
and automatic platen cooling. |
|
|
Standard Model Ranges
| Catalog Number |
Max. Capacity (tons) |
Nominal Work Area |
Adjustable Daylight Opening |
Cylinder Stroke (in) |
Tie Rod Dia. (in) |
Dimensions
W x D (in) |
Height (lb) |
Approx. Weight (lb) |
| CMG 30H-15 |
30 |
15 x 15 |
6 to 12 |
6 |
1.25 |
42 x 40 |
72 |
1,850 |
| CMG 30H-12 ASTM |
30 |
12 x 12 |
6 to 12 |
6 |
1.25 |
43 x 40 |
72 |
1,850 |
| CMG 50H-12 |
50 |
12 x 12 |
8 to 16 |
8 |
1.75 |
60 x 48 |
78 |
4,800 |
| CMG 50H-15 |
50 |
15 x 15 |
8 to 16 |
8 |
1.75 |
60 x 48 |
78 |
4,800 |
| CMG 50H-18 |
50 |
18 x 18 |
8 to 16 |
8 |
1.75 |
60 x 48 |
78 |
5,000 |
| CMG 50H-24 |
50 |
24 x 24 |
8 to 16 |
8 |
1.75 |
66 x 50 |
78 |
5,600 |
| CMG 75H-15 |
75 |
15 x 15 |
8 to 16 |
8 |
2 |
63 x 52 |
78 |
5,300 |
| CMG 75H-18 |
75 |
18 x 18 |
8 to 16 |
8 |
2 |
69 x 52 |
78 |
5,500 |
| CMG 75H-24 |
75 |
24 x 24 |
8 to 16 |
8 |
2 |
69 x 54 |
78 |
6,100 |
| CMG 100H-15 |
100 |
15 x 15 |
12 to 22 |
12 |
3 |
66 x 54 |
83 |
7,000 |
| CMG 100H-18 |
100 |
18 x 18 |
12 to 22 |
12 |
3 |
66 x 54 |
83 |
7,000 |
| CMG 100H-24 |
100 |
24 x 24 |
12 to 22 |
12 |
3 |
72 x 54 |
83 |
7,500 |
|
|
|
 |

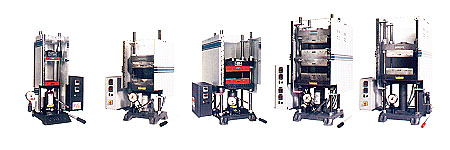

Heated Presses with digital temperature controls
and safety shields 7.5, 12, 25 and 30 ton capacity
標準加熱型壓片機
7.5, 12, 25, 30 噸
另可選配冷卻裝置.
|
|
| Catalog Number |
3690 |
5420 |
4386 |
4120 |
4122 |
4123 |
4389 |
3856 |
4126 |
3693 |
4128 |
4129 |
| Model |
7.5-15 |
Mini CH |
CH |
12-10H |
12-12H |
12-12H,C |
MH,C |
25-12H |
25-12H,C |
25-15 |
30-12H |
30-12-2H |
| Old Press Number |
3736 |
|
2086 |
3725 & 2625 |
2697 & 2625 |
3377 & 2729 |
2089 |
2518 |
2730 |
3737 |
2699 &
2629 |
2731 |
| Clamping Force: U.S. Tons |
7.5 |
12 |
12 |
12 |
12 |
12 |
25 |
25 |
25 |
25 |
30 |
30 |
Clamping Force:
(lb) |
15,000 |
24,000 |
24,000 |
24,000 |
24,000 |
24,000 |
50,000 |
50,000 |
50,000 |
50,000 |
60,000 |
60,000 |
Max. Temperature
(°F) |
650° |
650° |
650° |
650° |
650° |
650° |
650° |
650° |
650° |
650° |
650° |
650° |
| Platens (in) |
15 x 15 |
6 x 6 |
6 x 6 |
10 x 7 |
12 x 12 |
12 x 12 |
9 x 9 |
12 x 12 |
12 x 12 |
15 x 15 |
12 x 12 |
12 x 12 |
| Ram Stroke (in) |
5.1 |
5.1 |
5.1 |
5.1 |
5.1 |
5.125 |
6.5 |
6.5 |
6.5 |
6.5 |
6 |
6 |
Daylight Opening
(in) |
5 |
0 to 4 |
0 to 15 |
0 to 9 |
0 to 10 |
2 @ 2.5 |
2 @ 3 |
0 to 9.5 |
2 @ 3 |
5 |
0 to 12 |
2 @ 3 |
Overall Size
w x d (in) |
32 x 28 |
19 x 16 |
19 x 16 |
26 x 18 |
29 x 27 |
29 x 27 |
23 x 24 |
29 x 27 |
29 x 27 |
32 x 28 |
32 x 27 |
32 x 27 |
| Height (in) |
30 |
25 |
39 |
39 |
44 |
46 |
38 |
42 |
46 |
35 |
46 |
46 |
| Weight (lb) |
900 |
225 |
300 |
420 |
770 |
1,062 |
450 |
805 |
1,065 |
1,200 |
835 |
1,100 |
|
|
 |

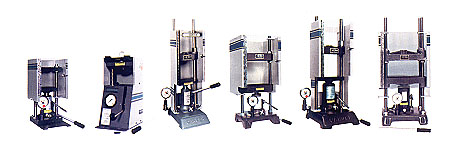

Standard Presses, 12, 25 and 30 ton capacity
標準型壓片機, 無加熱12,
25, 30 噸,
多種壓盤尺寸.
適用各種應用. |
|
| Catalog Number w/Shield |
3850 |
4350.L |
3851 |
3968 |
3969 |
3853 |
3855 |
3970 |
| Model |
Mini C |
Pellet |
Model C |
12-10 |
12-12 |
Model M |
25-12 |
30-12 |
| Old Press Number |
3393 |
3620 |
2086 |
3724 |
2696 |
2089 |
2702 |
2698 |
| Clamping Force: Tons |
12 |
12 |
12 |
12 |
12 |
25 |
25 |
30 |
| Clamping Force: (lb) |
24,000 |
24,000 |
24,000 |
24,000 |
24,000 |
50,000 |
50,000 |
60,000 |
| Platens (in) |
6 x 6 |
4 round |
6 x 6 |
10 x 7 |
12 x 12 |
9 x 9 |
12 x 12 |
12 x12 |
| Ram Stroke (in) |
5.1 |
5.1 |
5.1 |
5.1 |
5.1 |
6.5 |
6.5 |
6 |
| Daylight Opening (in) |
0.75 to 7 |
0 to 5.50 |
0.75 to 18 |
1 to 14 |
1 to 15 |
0.75 to 16 |
1 to 14 |
1 to 17 |
| Overall Size w x d (in) |
12 x 16 |
10.5 x 14 |
15 x 16 |
17 x 18 |
21 x 28 |
19 x 24 |
21 x 28 |
29 x 27 |
| Height (in) |
25 |
24.4 |
39 |
39 |
44 |
42 |
42 |
46 |
| Weight (lb) |
125 |
115 |
200 |
345 |
560 |
350 |
600 |
625 |
|
|
|
 |
 |

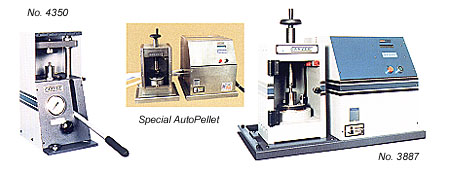

Manual, Auto benchtop pellet presses for
preparing pellets, bricks, briquettes and cakes
- No. 4350,
4350L - 4555, 4555L - 4565, 4565L.
12 / 40 / 50
ton Manual Pellet Press
- No. 3887,
4387 - 25 / 40
ton AutoPellet Press
|
|
|
|
|
|
 |
 |
|
|
|
Pneumatic Low Force & Laminating Presses |

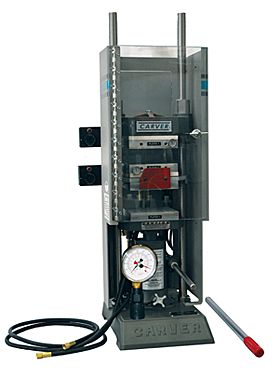

- No. 4130 --
Laminating Press, 12 ton capacity with Safety Shield
- No. 4132 --
Laminating Press, 30 ton capacity with Safety Shield
|
|
|
|
|
|
ASTM Presses for Special Applications
Molding ASTM Test Specifications Plastics,
elastomers and other materials |
|
|
|
Heating and Cooling Platen Options
|
|
|
|
Parts and Accessories for Carver
Presses: |
|
|
|
|
Laboratory
Accessories for Carver Presses - Floor Stands |
|
|
|
Laboratory
Accessories for Carver Presses - Gauges/Thermometers |
|
|
|
Laboratory
Accessories for Carver Presses - Heating/Cooling |
|
|
|
Laboratory
Accessories for Carver Presses - Hydraulic Units |
|
|
|
Laboratory
Accessories for Carver Presses - Carver Molds and
Dies |
|
|
|
Laboratory
Accessories for Carver Presses - Safety Shields |
|
|
|
Laboratory
Accessories for Carver Presses - Testing/Processing |
|
