無線傳輸氣体發生測量儀 / ANKOM Wireless Gas Production Measurement

The ANKOM^RFGas Production System provides an easy to use method for monitoring gas production. ANKOM 氣體發生測量系統, 它提供了一個容易使用的模組, 來監測並顯示微生物自然發酵時所產生的氣体.

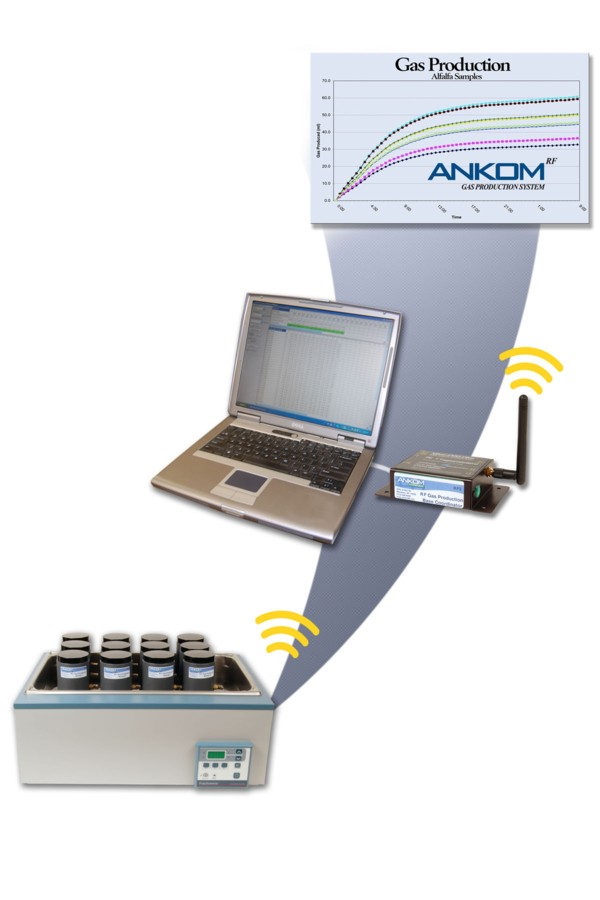

The system consists of sample jars, RF pressure sensor modules, computer interface receiver/contributor and operational software that can be used with any PC using a Windows XP or Vista based operating system. Samples and microbial inoculum are placed in jars, the RF sensor module is attached and the jar placed in an incubator. The pressure of each jar can be measured at users selected time intervals. Pressure measurements are recorded on a standard Excel spreadsheet and gas production curves can be generated. Recently the system has been used for VDI 4630 - Fermentation of organic materials - Characterisation of the substrate, sampling, collection of material data, fermentation tests and DIN 38414-S8 Fermentations tests (GB21) - Method for examination of the biodegradability of a substance.
ANKOM系統包括: 專利的樣品孵化瓶, RF壓力感測模組, 電腦接收器和一個可多台電腦使用的操作軟體. 操作過程容易, 精確, 效率高並且資料數據化, 您只需將樣品和微生物接種物放置在瓶子裏, 連接好RF壓力感測模組與孵化瓶並將其放置在一個恒溫的水浴槽裡即可開始操作. 使用者可自行設定壓力數據傳輸週期, 電腦可清楚測量到每一個瓶子內壓力的變化. 系統也允許使用者爲每個瓶子程序設定壓力釋放點, 壓力測量結果可以使用標準 Excel 表單記錄, 使用者也可自行定義氣体產生曲線圖表.

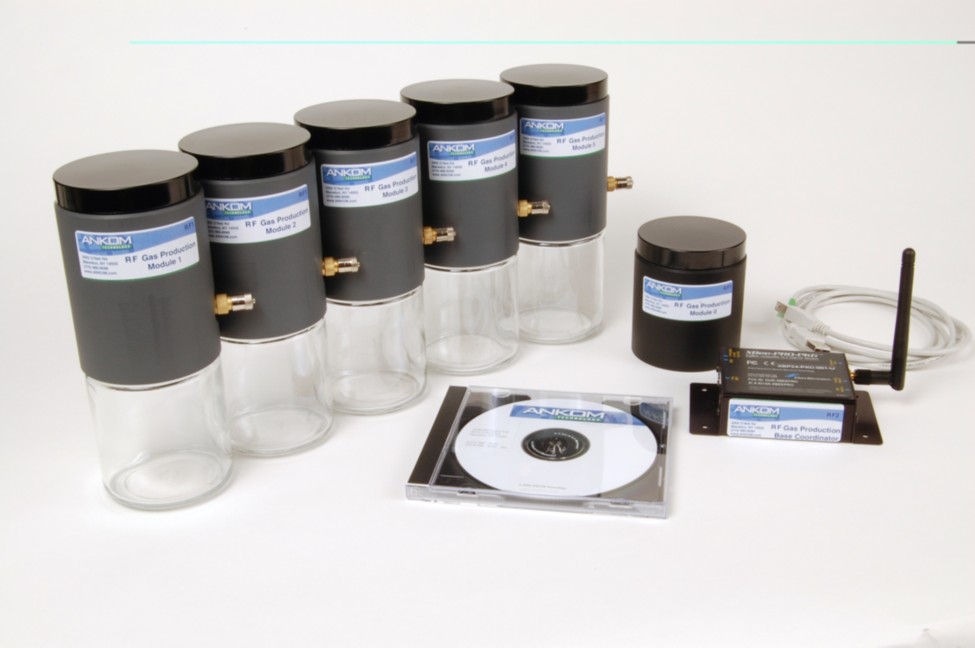

Low Cost Entry Starter Kit.

Starter Kit includes: Five gas production modules (with sample jars), an atmospheric remote, system software, and a receiver/contributor with USB cable. NOTE: We are implementing a new and improved design that uses a #45 thread poly-coated laboratory safety bottle. This design provides greater flexibility on jar sizes (250ml, 500ml, 1000ml), better sealing and easier open and close.
