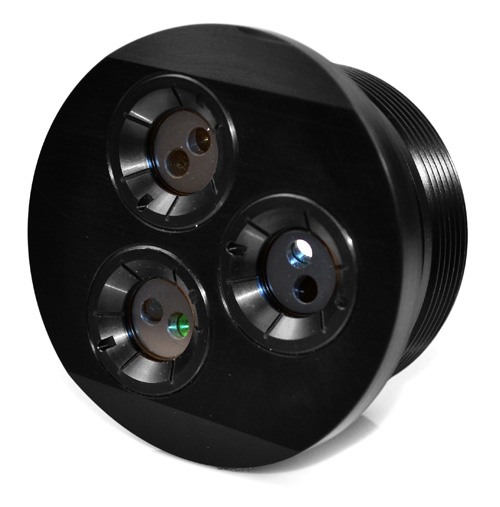

C7 integrator™
Specification,
整合型螢光感應器規格, 最低偵測極限, 線性測定範圍
|
Application
|
Min. detection limit
最低偵測極限
|
Linear range
線性測定範圍
|
|
Linearity: 0.99R2
|
|
CDOM/FDOM |
0.15 ppb*
0.5 ppb* |
0-1,250 ppb*
0-5000 ppb* |
|
Chlorophyll a, in-vivo Blue Excitation |
0.025 μg/L |
0-500 μg/L |
|
Chlorophyll a, in-vivo Red Excitation |
0.5 μg/L |
> 500 μg/L |
|
Fluorescein Dye |
0.01 ppb |
0-500 ppb |
|
Oil - Crude |
0.2 ppb* |
0-2700 ppb* |
|
Oil - Refined |
10 ppb** |
> 0-10000 ppb** |
|
Optical Brighteners |
0.6 ppb* |
0-15000 ppb* |
Phycocyanin
(Freshwater Cyanobacteria) |
2 ppbpc |
0-40000 ppbpc |
|
Phycoerythrin
(Marine Cyanobacteria)
|
0.15 ppbpe |
|
|
Rhodamine WT
|
0.01 ppb |
0-1000 ppb
|
|
tryptophan for wastewater monitoring
|
3 ppb |
0-20000 ppb
|
|
Turbidity
|
0.1 NTU |
0-3000 NTU
|
* 1,5 Napthalene Disulfonic Disodium Salt
** Quinine Sulfate
*** PTSA (1,3, 6, 8 - Pyrenetetrasulfonic Acid Tetrasodium Salt)
**** BTEX (Benzene, Toluene, Ethylbenzene, Xylenes)
PC Phycocyanin pigment from Prozyme diluted in Deionized
water
PE Phycoerythrin pigment from Prozyme diluted in Deionized
water |

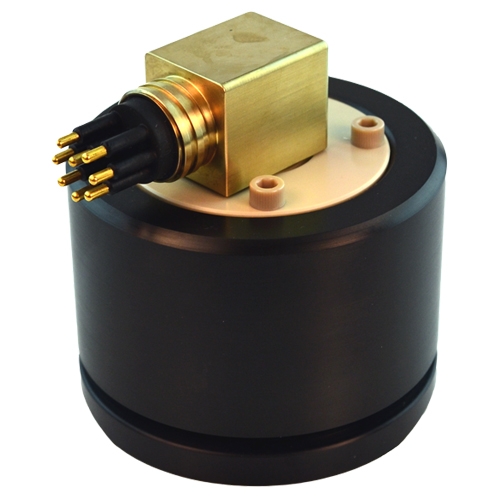

C7 integrator™
整合沉水式螢光感應器附件
標準液
 |
C7 USB / PC
訊號線
 |
5m 訊號線
 |
C7 integrator 校正片
 |
C7
校正片蓋
 |
|
