超純水總有機碳分析監測儀器 / TOC Analyzer For Ultra Pure Water Applications
The Theory of evolution for TOC continuous measurement
Combustion Oxidation - Wet Oxidation - UV Batch type oxidation Conductivity detection - UV continuous type Oxidation Conductivity detection.

The TOC contained in ultra pure water is decomposed and oxidized by ultra-short waves (184.9 nm) to become an intermediate and finally carbon dioxide and water. The TOC measuring technology of the batch type has been the main stream traditionally, yet it has not been unable to meet the needs in emergency because the batch type could not detect a sudden increase of TOC or a change in water quality.

The TAC series detect a variation of conductivity generated in the stage of intermediate or carbon dioxide of complete oxidation by control and application of the exposure dose of ultraviolet radiation, the sample quantity of flow and the measurement algorithm, and by those calibration curves the TOC measurement is conducted, enabling the process control when a high speed mode in emergency and when an absolute mode when it it hard to be influenced by a trace quantity of dissolved gases in sample solution.

It is possible to measure the variation of TOC and change of water quality in approximately 30 seconds in the high-speed mode and 3 minutes in the absolute mode.

Advantages:

  • Instant grasping of a change of water quality in the continuous TOC measurement.
  • Easy operation and maintenance-free.
  • Compact designing.
  • Utilizes a conductivity sensor for precision measurement of a trace quantity of flow.
  • Possible to decompose hard-degradable TOC by a high-power ultra-violet lamp.
  • Uniform oxidation characteristic realized by a special chamber processing technology.
  • Memory function of measurement date.
  • Connectable to a printer.
  • No needs for reagents and carrier gases.
By providing four types of TOC lineup, it has been made possible to carry out the TOC inline continuous measurement in ultra pure water and ultra pure water for next generation used for manufacture of semiconductors and liquid crystals, and ultra pure water for medical and pharmaceutical use (injection and preparation), The TOC off-line continuous measurement has been also possible by using an optional pump.

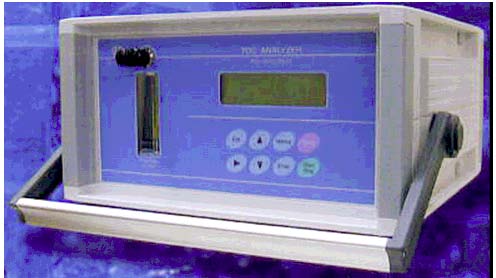

攜帶型連續監測總有機碳分析儀
Model: Accura-R

  TOC Analyzer for Ultra Pure Water

Principle: UV Oxidation & Conductivity Detection

Mode: Hi Speed / Abso.

Measuring range: 0 ~ 999.99 ppb.

Repeatability: ± 0.1 ppb

Resolution: 0.01 ppb

Sample flow rate: More than 100 ml/min.

Sample pressure: 0.3 ~ 5.0 kg/cm²

Sample quality: > 1 M Ohm/cm

Sample temperature: 5 ~ 50 °C

Output: 2 sets SPDT contacts for Hi alarm / 4~20mADC analog output
Model: Accura-SX

  TOC Analyzer for  Ultra Pure Water - Next Generation

Principle: UV Oxidation & Conductivity Detection

Mode: Hi Speed / Abso.

Measuring range: 0 ~ 30.000 ppb.

Repeatability: ± 0.1 ppb

Resolution: 0.001 ppb

Sample flow rate: More than 100 ml/min.

Sample pressure: 0.3 ~ 5.0 kg/cm²

Sample quality: > 10 M Ohm/cm

Sample temperature: 15 ~ 40 °C

Output: 2 sets SPDT contacts for Hi alarm / 4~20mADC analog output
Model: Accura-H

  TOC Analyzer for Pharmaceutical & Hot DI Water 藥廠專用機型

Principle: UV Oxidation & Conductivity Detection

Mode: Hi Speed / Abso.

Measuring range: 0 ~ 999.99 ppb.

Repeatability: ± 0.1 ppb

Resolution: 0.01 ppb

Sample flow rate: More than 100 ml/min.

Sample pressure: 0.3 ~ 5.0 kg/cm²

Sample quality: > 20 µS/cm

Sample temperature: 5 ~ 99 °C

Output: 2 sets SPDT contacts for Hi alarm / 4~20mADC analog output

固定設置型線上連續監測總有機碳分析儀
Model TAC-601D

  On-Line TOC Monitoring System

Principle: Wet Oxidation / NDIR Detector

Measuring range: (A) 0 ~ 2000 ppb.; (B) 0.1 ~ 20.0 ppb

Repeatability: (A) ± 10 ppb.; (B) ± 0.1 ppb

Resolution: (A) 5 ppb.;  (B) 0.1

Sample flow rate: More than 30 ml/min.

Sample pressure: 0.0 ~ 5.0 kg/cm²

Sample temperature: 5 ~ 50 °C

Output: 2 sets SPDT contacts for Hi alarm / 4~20mADC analog output

　
Optional Accessories:
Sampling Pump
Multi Network System
Data Logging Software
Prefilter System
Transfer Unit for Multi sampling water
Printer.
Replacement spare parts:
UV Lamp
Recording Chart paper

　

　
