Nabertherm
熔解坩鍋爐
系列 |
|
|
|
 |
|
可傾倒式油燃燒坩鍋型熔爐
/
KB 40/14 ~ KB 80/14 |
Tilting
Melting Furnace, Fuel-fired-Crucible Furnaces
Volume: 40 ~ 80 l
max. Temp.: 1400 °C
Fuel-heated bale-out furnaces for melting non-ferrous metals,
tilting system with 2 hydraulic cylinders, removable collar plate
with guard for easy exchange of crucible, emergency outlet, high
efficiency due to pressurized operation, exhaust gas led off above
rim of crucible, option: waste gas can also be led off from the
side, two-step burner control, fully automatic fuel/air ratio
control, extras on request.
原廠目錄下載
(PDF 605 KB, 20 pages)
|
|
|
|
 |
|
可傾倒式電氣加熱坩鍋型熔爐
/ K10/12 ~ K360/12 |
Tilting
Melting Furnace, Electrically-heated Crucible Furnaces,
Volume: 10-360 l
max. Temp.: 1200 °C
Electrically-heated tilting crucible furnaces for melting and
holding non-ferrous metals, excellent heat insulation, heating from
2 sides and rear, 2 hydraulic cylinders with end position dampers,
uniform pouring through fine precision manual control, upper cover
plate made from highly heat-resistant concrete, practical emergency
drain outlet, extras on request.
原廠目錄下載
(PDF 605 KB, 20 pages) |
|
|
|
 |
|
油燃燒式坩鍋型熔爐
/
TB 10/14-TB 80/14 |
Bale-out
Furnaces, Fuel-fired-Crucible Furnaces
Volume: 10-80 l
max. Temp.: 1400 °C
Fuel-heated bale-out furnaces for melting non-ferrous metals,
removable collar plate with guard for easy exchange of crucible,
emergency outlet, high efficiency due to pressurized operation,
exhaust gas led off above rim of crucible, option: waste gas can
also be led off from the side, two-step burner control, fully
automatic fuel/air ratio control, extras on request.
原廠目錄下載
(PDF 605 KB, 20 pages)
|
|
|
|
 |
|
電氣加熱式坩鍋型熔爐
/ T10/11-T240/11 |
Bale-out
Furnaces, Electrically-heated Crucible Furnaces,
Volume: 10-240 l
max. Temp.: 1100 °C
Electrically-heated bale-out furnace for melting and holding
non-ferrous metals, excellent heat insulation, heating from all
sides, additional crucible sealing, upper cover plate made from
highly heat-resistant concrete, practical emergency drain outlet,
extras on request.
原廠目錄下載
(PDF 605 KB, 20 pages)
|
|
|
|
|
|
|
 |
|

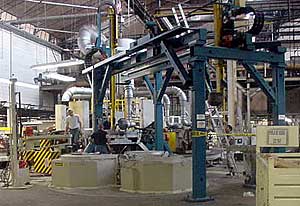

Revolving
table melting plant,
Drehtisch-Anlage
Volume: 80-360 l
max. Temp.: 1400 °C
Automatic rotary-table melting furnace plant for max. 6 holding
furnaces, diameter up to 8 m, emergency outlet container, transport
time for 60 degrees < 30 seconds.
Modifications possible.
原廠目錄下載
(PDF 605 KB, 20 pages)
|
|
|
|
 |
|
最高溫度:
900°C.
內部容量:
240 公升
Transport
Ladle TRP,
Volume: 240 l
max. Temp.: 900 °C
Electrically-heated transport ladle, melting performance 200 kg
Al/h, excellent heat insulation, optimum centre of gravity position
and smooth-running rotostop drive, easy handling for accurate
pouring, heating modules can be exchanged individually, preventing
long periods of standstill, extras on request.
原廠目錄下載
(PDF 605 KB, 20 pages) |
|
|
|
 |
|
絕熱高溫爐 /
N100-N2200/GS, S240/S |
最高溫度:
850°C.
內部容量:
100 ~ 2200 公升
Dewaxing
Furnaces,
Volume: 100 ~ 2200 l
max. Temp.: 850 °C
Chamber and pit-type furnaces for dewaxing investment moulds and
subsequent firing of the ceramic moulds, integral exhaust-air nozzle
for leading off waste gas in an environmentally-friendly manner,
special baths in bottom to collect residual materials/substances,
heated drain for automatic draining off of residual
materials/substances.
原廠目錄下載
(PDF 605 KB, 20 pages) |
|
|
|
 |
|
Bath-Type
Furnaces,
Volume: 120 ~ 500 l
max. Temp.: 1000 °C
Long-life bath-type furnaces for holding non-ferrous metals,
excellent heat insulation, upper section can be swung out for
cleaning the bath, openings for filling and ladling, with insulated
lid, extras on request.
原廠目錄下載
(PDF 605 KB, 20 pages)
|
|
|
|
 |
|
實驗研究用可傾倒式坩鍋型熔解爐
/ K1/10 ~
K4/13 |
Volume: 1 ~ 4 L.
max. Temp.: 1000, 1300 °C
Compact laboratory tilting crucible furnaces for melting and holding
non-ferrous metals, heating from 2 sides, short heating-up and
melting times, various processing temperatures, graphite crucible
included, extras on request.
原廠目錄下載
(PDF 605 KB, 20 pages) |
|
|
|
|
