 PROCESS ANALYZERS Instruments and Systems for Liquid Analysis





　
BEVERAGES ANALYSIS SYSTEMS / 製程線上多功能自動飲料分析儀器系統

Analysis unit
 The IB04 multiparametric analysis system is designed to monitor carbonated and not carbonated beverages with unmatched level of accuracy.
The unit performs the analysis of Brix/DIET and CO2 parameters of the product, indicates alarm conditions and transmits information to remote devices for data acquisition.

As additional options the unit could be able to perform the automatic control of the sugar inversion, the measurement of "Ready to drink" alcoholic beverages and the measurement of dissolved oxygen content in the finished beverage.

原廠規格說明書下載 (PDF 160 KB)

IB04 multiparametric analysis system
儀器技術規格 / Technical Specifications:
Measurement limits:
Concentration: 0...18.5 Brix for "Regular" Scale.
0...2000mBrix for "Diet" Scale.
0...200% for "% Standard" display Scale.
Carbonation: 0...5V/V; 0...10g/l.
Additional Parameters Measurement limits:
Alcohol:0...10% w/w; 0...12% V/V.
Oxygen: 0...150 ppb.
Accuracy:
Concentration: 0.1% of the C.S., max +/-0.02Brix with +/-10°C (+/-18°F) variation for "Regular" Scale;
0.15% of the C.S., max +/-0.003Brix with +/-2,5°C (+/-3.6°F) variation for "Diet" Scale.
Carbonation: +/-0.05 V/V; +/-0.1g/l.
Additional Parameters Accuracy:
Alcohol: better than +/-0.02% w/w
Oxygen: better than +/-2 ppb
Measurement scales:
"BRIX", "DIET", "%STANDARD"; "Gas/Vol" o "g/l"; Alcohol; O2 ppb
Product temperature:
-5°C...+35°C equivalent to 23°F...95°F with automatic compensation of sugar concentration by means of a Pt100 temperature probe.
Line Pressure:
0...7bar (0...110psi) at 20°C (68°F).
Protection Category:
IP55 to EN60529.
Conformity:
CE mark shows conformity to listed UE Directives and standards.
Power Supply:
AC 3/PE 230/400V +/-10%, 50Hz+/-2%
-460V+/-10% 60Hz+/-2%, 1200VA
(other power supplies on request).
Interfaces:
N°2 4...20mA on 470 completely independent channels
RS422/485 for connection to the "CM00" remote Control Unit
RS422 interface "Labtech" data acquisition Software Package to a
PC RS485 interface (Optomux Protocol)
Characteristics: - Measurement prism in "Optical Glass".
- Light source (LED);High resolution detecting element "CCD".
- Backlit graphic LCD display a 240x128 points.
- "Mechanical Shock" degassing system.
- Relative Pressure Sensor in AISI 316 stainless steel & Hastelloy C276.
- Self-priming centrifugal pump.
Dimensions:
660 (b) x 1650 (h) x 550 (p), ~150kg.
　
Remote Display

IRIO 製程線上多功能自動飲料分析儀遙測顯示器

如果儀器設置現場缺乏適當的安裝空間, 為因應客戶操作力求方便的需求, IRIO Remote Display 遙測顯示器是最理想的選擇, 它不僅可以顯示白利度及碳酸濃度同時亦可顯示警報狀況.

In case the measuring devices are located in positions not visible to the operator we can supply a remote display that shows the Brix and CO2 degree values as well as the alarm status.

Remote display
儀器技術規格 / Technical Specifications:
Measurement scales:
"BRIX", "DIET", "% STANDARD";
"Gas/Vol" or "g/l" depending on the IB02 settings
Protection category:
IP55 in accordance with EN60529
Conformity:
CE mark shows conformity to EU Directives
Supplies:
AC 155/230 +/- 10%, 50...60Hz,30VA
Interfaces:
- RS232 for connection to IB01
Features:
- Box with AISI 304 STEEL cover, for wall-fitting
- Microprocessor "CPU"
- Measurements shown on two 4-digit 7 segments red LED displays
- Scratchproof polycarbonate front panel with LED to indicate power ON and LED indicating measurement alarm conditions
Dimensions:
270 (b) x 160 (h) x 107(p), ~3kg
　
Automatic brix and co2 controller

製程線上多功能自動飲料分析儀器系統之周邊控制器設備

糖及碳酸注入及飽和濃度控制系統, 全套包括計量泵浦及控制閥.

Automatic BRIX (dosing pumps and orifices) and CO2 (injection and saturation systems) control.

　

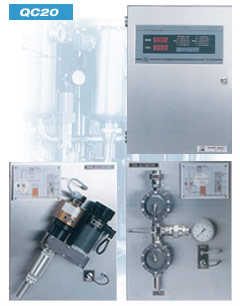

 QC20 Automatic brix and co2 controller
　
儀器技術規格 / Technical Specifications:
Product temperature:
0°C...+35°C with automatic compensation of temperature measured by means of temperature sensor Pt100
Line pressure:
1...12bar (14.5...174psi) at 20°C
Protection category:
IP55 in accordance with EN60529
Conformity:
CE mark shows conformity to EU Directives
Supplies:
AC 155/230v +/-10%, 50...60Hz,80VA.
Dehumidified air 4... 10bar (58... 145psi)(CO2 regulation only)
Interfaces:
In concentration regulation:
- N. 1 "Interface" Card for connecting Position Encoder
- N. 1 "Adapter" Card for Acquisition of Temperature of concentrated syrup or water
In CO2 regulation:
- N. 1 0...60mA output for "Electro pneumatic Converter" control
-N. 1 "Adapter" Card for Acquisition of Temperature and Pressure (for Saturator only)
- N°1 "Converter F/I" Card for Acquisition of measuring Turbine rpm (for Injection only)
- RS422 for connection to "IB02" Beverages Analysis Unit
- N. 5 multifunction inputs; n. 1 output for alarm (24V/2A-DC/AC)
Features:
- AISI 304 STEEL panel with door
- Microprocessor "CPU"
- Indication of measurements and mnemonic codes by means of two 4-digit 7 segments red LED displays
- Scratch-proof polycarbonate keypad with mechanical keys and 10 indicator LEDs for the main functions
- 4-digit, 7 segments red LED display + 1x8 characters backlit alphanumeric LCD display
Regulation of concentration.:
- "Shut-off valve" with Tri-Clamp connections
- "Stepper Motor" complete with "Electronic Encoder"
Regulation of Co2:
- Remote servo-controlled pressure regulator with incorporated blowdown valve
- Remote servo-controlled pressure relief valve
- Pressure sensor with Titanium membrane
- "Turbine" flow transmitter
Panel Dimensions:
380 (490) (b) x 550 (h) x 210 (p), 24 (30)kg
　
Remote control and data acquisition software

製程線上多功能自動飲料分析儀器系統之數據資料處理控制軟體

The newest and most complete software for remote control and data acquisition available on the market.

　

Remote control and data acquisition software
儀器技術規格 / Technical Specifications:
Conformity:
CE mark shows conformity to EU Directives
Supplies:
AC 115/230V+/- 10%, 50...60Hz, 600VA
Interfaces:

- RS232 or RS422/485 for connection to data acquisition Personal Computer
- RS422 for connection to "IB02" Beverage Analysis Unit and "QR20" Beverage Recording Unit
- Parallel CENTRONICS for connection to Printer and "Hardware key"
- AUX for Modem connection with input for auxiliary telephony device
- N. 8 relay outputs for signaling alarm completely configurable by means of software
Features: - Desktop Personal Computer, "CPU" with PENTIUM® Microprocessor, 16Mb Ram, Video Board, Modem, 3-button Mouse
- 17" Digital Monitor
- Hardware Key for Software protection
- Alarms output Interface Card
- Operating Software in Microsoft® Windows ambient
- Complete Monitoring and Management of a maximum of 8 Analyses and Regulation lines
- Creation and storage of a maximum of 999 combinations of operating parameters
- Tele-diagnostics or remote control of all functions by means of Modem+ Pcanywere software supplied
