製程線上自動監測折射計
/ VIP Inline-Process Refractometer

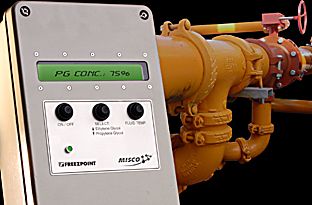

VIP Inline Process Refractometer Each MISCO VIP Inline Process Refractometer is custom designed for your application. An in line process refractometer allows you to continuously monitor and control the concentration of dissolved solids or water-soluble liquids, saving you both time and money. The VIP process refractometer will automatically monitor the specified parameters of your process giving you a temperature compensated reading that is easily correlated to percent solids or other physical property of interest. You can have 24-hour monitoring of quality without the time involved in periodic manual sampling. Unlimited ApplicationsInline refractometers maximize the profitability of your process or manufacturing line! The MISCO VIP Refractometer has extensive applications in the food, beverage, sugar, chemical and metalworking industries and can monitor and control virtually any liquid with dissolved solids or soluble liquids. Inline process refractometers increase your profitability by maintaining a consistent high-quality product and by eliminating wasted fluid and operator time. Call our applications' engineers for assistance with your particular application. VersatilityThis versatile inline process refractometer is microprocessor controlled and is configured with dual 4-20 mA outputs, which allow you to record and/or automatically control your critical process. These outputs may be configured for many possible applications, for example:
Each VIP inline process refractometer is equipped with five relays. We can set any combination of these relays for you to trigger at speciific preset thresholds. |
|||||||||
VIP Inline Process Refractometer Specifications |
Concentration Units | Customer Specified |
Concentration Precision | +/- 1% of Span |
Overall Accuracy | +/- 0.0001 Refractive Index |
Range 1 | 1.3330 to 1.3950 R.I. |
Temp. Range - Sensor | -29 to 100°C. (-20 to 212°F.) |
Temp. Range - Controller | 0 to 52°C. (32 to 125°F) |
Process Pressure | 10.3 bar (150 p.s.i.) Max |
Sensing Surface | Sapphire |
Sensor Construction | Stainless Steel |
Power Input (specify) | 24VDC (12 VDC Optional) |
Max. Power Consumption | 1.0 Ampere |
Sensor Cable Length | 3.7 meters (12 foot) Standard |
Gasket Material | XXXX |
Sensor Connector | 1.5 |
[optional] | Sanitary Tri-Clamp |
