製程線上自動監測折射計

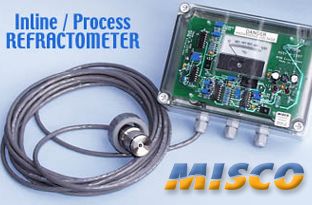

/ M111 Inline-Process Refractometer
VersatileThis versatile inline refractometer comes standard with a 4-20 mA output which allows you to record and automatically control your critical process. You can increase your profitability by maintaining a consistent high quality product and by eliminating wasted fluid and time. ApplicationsThe M111 inline refractometer has extensive applications in the food, beverage, sugar, chemical and metal-working industries and can monitor and control nearly any liquid with dissolved solids or soluble liquids. For metal working, an optimum lubrication to coolant ratio results in maximum tool life and productivity. This inline refractometer can provide 24-hour continuous monitoring of your lubrication fluid without your having to stop to use a hand refractometer. You can mount the small console right on your CNC mill or other workstation for immediate and continuous visual feedback. Never again will your mixture run lean or rich without your knowing it. All FluidsWhether the fluid is transparent or milky, green, brown or white, 3% or 25%, this inline refractometer can continuously and easily measure and control the mixture ratio. The M111 Inline Refractometer has a 4 - 20 mA output which can be used in conjunction with your PLC or other controls to automatically maintain the ideal fluid mixture. |
|||||||||
M111 Inline Process Refractometer Specifications | |
Feature | Specification |
Range: | 0 to 100 Brix |
1.3330 to 1.5400 R.I. | |
Max. Recommended Span: | 40 Brix or Equiv. |
Accuracy: | Better Than 5% of Span |
Stability: | Better Than 1% of Span |
Sensitivity: | Better Than 1% of Span |
Temp. Range: | 0 to 2500 'F |
Power: | 110/220 VAC input |
Console Dimensions: | W 7.09" x H 4.33" x D 3.47" |
