數字顯示高精密型折射計

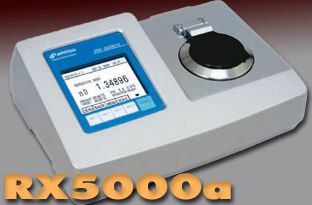

/ RX5000a Digital Abbe - Laboratory Refractometer
The RX5000a refractometer is the latest high-precision Abbe / laboratory refractometer. It replaces old-style manual Abbe and digital refractometers and uses precision optics to extend the repeatability and accuracy of refractive index measurements to the fifth decimal place (+/-0.00005). The RX5000a refractometer offers FAST, precise, accurate, repeatable measurements in the laboratory or production area. The time needed per measurement is less than five seconds. A new Peltier device eliminates the need for an external
water bath by automatically controlling sample temperature. Measurements
can be set to start automatically when the sample reaches a target
temperature. The RX5000a can display The RX5000a has a large backlit LCD display and an
easy-to-understand user interface that is controlled by four dynamic
function keys. The screen prompts the user with an explanation for each
key. Further, the RX5000a is completely user programmable using any
standard personal computer. It may
The attractive compact design is equally at home in the research lab, industrial plant, or anywhere high-precision refractometer readings are needed. |
RX5000a Abbe Refractometer Specifications | |
Feature |
Specification |
Measurement Wavelength | 589 nm |
nD Range | 1.32700 to 1.58000 |
nD Resolution | 0.00001 Refractive Index |
nD Accuracy (+/-) | 0.00004 Refractive Index |
Brix Range | 0 to 95 Brix |
Brix Resolution | 0.01 Brix |
Brix Accuracy (+/-) | 0.03 Brix |
Temp. Control Range | 5 to 60°C. |
Other Scales | Up To 30 User-Defined W/ ATC |
Dimensions | 37x26x14cm, 9.0kg |
Power | 100-240
Volts, 50/60 Hz (US) 220 Volts, 50/60 Hz |
Country of Origin | Japan |
On-Screen Instructions | English |
Display | 134mm x 76mm (5 1/4 |
