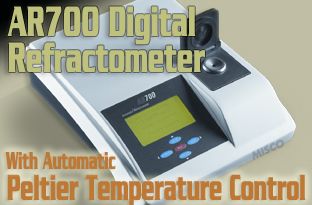

數字顯示阿貝式折射計 / AR700 Digital Abbe Refractometer具有固態帕爾帖溫度控制功能 / With Solid State Peltier Temperature Control
Automatic Temperature Equilibration Detection allows the user to load a hot or cold sample and immediately press the read button. Sample temperature is monitored until an equilibrium is reached with the instrument, at which time the reading will be taken. This ensures the highest level of reading accuracy without the need for a technician to monitor temperature or set a delay timer.
|
||||||||||
|
||||||||||
AR600 Abbe Refractometer Specifications | |
Feature |
Specification |
Measurement Wavelength | 589 nm (others available) |
nD Range | 1.33000 to 1.60000 |
nD Resolution | 0.00001 Refractive Index |
nD Accuracy (+/-) | 0.00005 Refractive Index |
Brix Range | 0 to 100 Brix |
Brix Resolution | 0.01 Brix |
Brix Accuracy (+/-) | 0.03 Brix |
Temp. Control Range | 10 to 100°C. |
Temp. Comp. Range | 10 to 45°C. |
Operating Range | 10 to 45°C. |
Calibration | Optionally Calibrate from 1 to 5 points |
Traceable Calibration Solutions Available | |
Other Scales | Up To 14 User-Defined W/ ATC |
Dimensions | 33 cm W x 40.6 cm L x 11.5 cm H |
Weight (net) | 7.3 Kg (16 lbs.) |
Supply Voltage | 90-246 VAC / 47-63 Hz. |
Max Input Power | 220W |
Display | 11 cm x 6 cm |
Electrical Approvals | U.L., C.S.A., CE, and VDE |
Country of Origin | USA |
On-Screen Instructions | English, Spanish, German, and French |
Interval Trigger | Continuous Readings Set at any Interval |
Delay Trigger | Up to 4 minutes, in 15-second increments |
Temperature Trigger | Trigger at temperature equilibrium |
