數字顯示阿貝式折射計

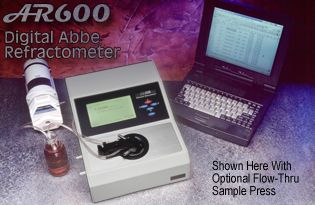

/AR600 Digital Abbe Refractometer
Precision optics and superior image analysis extend the range of accuracy and repeatability in measurement. The fully automated measurement process eliminates subjectivity; no manual adjustments are necessary, just place the sample on the measuring surface, press a button, and receive an instant digital readout.
The large graphical LCD display is easy-to-read and prompts the users
with on-screen instructions to walk them through all its features. Setup,
diagnostic and calibration routines are displayed with
Users may accurately test fluids with 5th decimal place refractive index accuracy. Advanced optoelectronic design allows the AR600 to operate continuously at only two to three degrees above ambient room temperature, eliminating the need for a temperature-control bath in many instances.
|
||||||||||
|
||||||||||
|
||||||||||
AR600 Abbe Refractometer Specifications | |
Feature |
Specification |
Measurement Wavelength | 589 nm (others available) |
nD Range | 1.32000 to 1.52000 |
nD Resolution | 0.00001 Refractive Index |
nD Accuracy (+/-) | 0.00002 Refractive Index |
Brix Range | 0 to 90 Brix |
Brix Resolution | 0.01 Brix |
Brix Accuracy (+/-) | 0.02 Brix |
ATC* Range | 10 to 40°C. |
ATC* Accuracy (+/-) | 0.1°C. |
Operating Range | 10 to 60 Degrees Celsius |
Calibration | Optionally Calibrate from 1 to 5 points Traceable Calibration Solutions Available |
Other Scales | Up To 14 User-Defined W/ ATC |
Dimensions (US) | 28.5 cm W x 40.6 cm L x 15.9 cm H (11.25 |
Power (Switchable)** | 115 Volts, 50/60 Hz (US) 220 Volts, 50/60 Hz (European 'S' Power Cord) 220 Volts, 50/60 Hz (UK Type 'G' Power Cord) |
** Must specify power cord type when ordering. | |
Electrical Approvals | U.L., C.S.A., CE, and VDE |
Country of Origin | USA |
On-Screen Instructions | English, Spanish, German, and French |
Interval Trigger | Continuous Readings Set at any Interval |
Delay Trigger | Up to 4 minutes, in 15 second increments |
Temperature Trigger | Trigger at temperature equilibrium |
Display | 134mm x 76mm (5 1/4 digit) |
