Operating Voltage: Battery Powered – 4x “D” cells

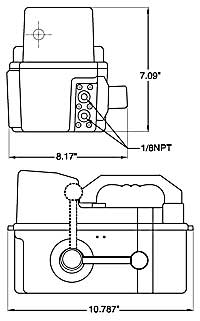

External Dimensions:
Enclosure: 11” (L) x 7” (W) x 7-1/8” (D)
(28 cm x 17.7 cm x 18 cm)
Weight: <7 lbs., including 4 common “D” size batteries

Display: Large, 4 digit LCD display with rate of change bar graph indicator.
Low battery indicator: “Hot Start” power up feature displays most recent setup

Enclosure: NEMA-4X/IP66 impact resistant plastic enclosure; intrinsically
Safe: Designed to meet FM Class 1, Division 1, Groups A-G, approval pending

Sensor: Planar

Measurement Range: -100°C to +20°C (-148°F to +68°F) dew point temperature

Accuracy: ± 2°C ( 3.6°F) dew point temperature

Readout Units of Measure: Dew Point °C, Dew Point °F, ppmv, Lbs/MMSCF, g/m³, g/kg, %RH

Secondary Readout Units of Measure: Temperature °C, Temperature °F, Pressure psig**, Pressure psia**, Pressure bars**, arbitrary scaled input voltage, plus all primary units of measure

Repeatability: ± 1.0°C dew point temperature

Max. Pressure Rating: 150 psig (10 bar)

Operating & Storage Temperature: -20°C to +40°C (-4°F to +105°F)

Resolution: 0.1°C dew point temperature

Calibration: Factory recalibration recommended every 6-12 months depending on use

** With optional pressure transducer

Ordering Information
1 2 3

1 Certification
R Standard, Class I, Div. 2, Groups A-D, dust ignition proof, FM,
CENELEC, ATEX, CSA
A Intrinsically safe Class I, Div. 1 (Zone 1), Fm, CENELEC, ATEX, CSA
Y Other

2 Gas Connection
1 Gas inlet/outlet connection 1/8” FNPT 316 SS
2 Gas inlet/outlet connection _” tube 316 SS
3 Gas inlet/outlet connection 6 mm tube 316 SS
4 Gas inlet/outlet 3 ft. PFA hose with quick connect to process (1/8” tube process connection)
5 Gas inlet/outlet connection _” tube PFA, condition if A ordered above
6 Gas inlet/outlet connection 6 mm tube PFA, condition if A ordered above
9 Other

3 Pressure Compensation
1 Basic configuration
2 Pressure sensor built-in for ppm compensation
9 Other
