DewPro MMR2250

DewPro MMR 2350 Relative Humidity Analyzer

An economical process control instrument in a rugged industrial package, the rh-plus MR2350 mid-range dew point and relative humidity analyzer facilitates control of many manufacturing processes. The MR2350 combines with the MDR3 probe, and is available both in wall mount and panel mount models.

The microprocessor-controlled analyzer features user-programmable functions including dew point and relative humidity measurement, calibration data, alarm set points, and a variable output range. The MR2350 features an available second output for temperature, which further increases its versatility

Features:

	Line powered
	Wall-mount and panel-mount versions – NEMA 4X(IP67)
	Easily Field Calibrated
	Up to two outputs and two alarms

Options:

	Wall-mount version
	Second output for temperature
	Panel-mount version
	X-proof enclosure
	Saturated Salt Calibration
	24 V DC supply

原廠目錄下載 (PDF Format, 1 pages, 71 KB.)
DewPro MMR2350 Relative Humidity Analyzer

SPECIFICATIONS

Electronics: Microprocessor-controlled updating measured value every three seconds

EMI/RFI/ESD Protection: Exceeds IEC 801.2; ANSI C63; IEC 801.4; ANSI/IEEE C62.41; and IEC 801.5, ANSI/IEEE C62.41 NAMUR standards

Moisture Units: Relative humidity in percent; dew point in ·C or °F; user-selectable

Temperature Units: °C or °F; user-selectable

Outputs: Isolated 0/4-20 mA into 500 maximum load, programmable range corresponding to user-selected moisture unit; two alarm relays, fail-safe mode, SPDT, dry contacts rated at 250 V AC, 2.5 A, P AC = 300 VA, cos phi > 0.7, P DC = 100 W, 100 V DC, alarm setpoint corresponding to moisture unit, second relay is process or system alarm (selectable); optimal second output for temperature, fixed range; with second analog output option, second alarm always serves as system alarm.

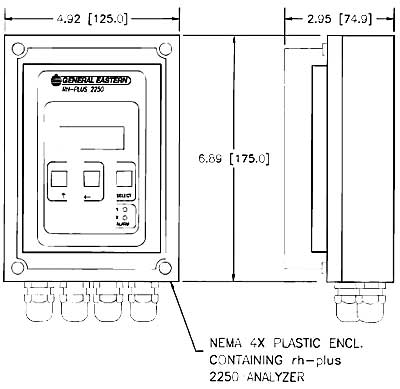

Enclosures: NEMA 4X (CSA Type 3); NEMA 3/4/7/9; panel mount (door optional) NEMA 1

Cable Connection: 2 each PG 9 and 2 each PG 11 cable glands (wall mount only);
screw terminal; 2 each 1/2” conduit hub (NEMA 3/4/7/9 only)

Program: Non volatile memory

Data: EEPROM

User Interface: Three push-buttons for display and data manipulation

Display: 0.5” four-character LCD

Operating and Storage Temperature: -10°C to +50°C (14°F to 122°F)

Power: 85 to 130 V AC, 187 to 276 V AC, jumper selectable; 7 VA; 50/60 Hz; 24 V DC optional

Weight: 4 lbs. (1.8 kg)

Ordering Information MMR2350
1 2 3 4 5

1 Certification
C CSA General Purpose Approval (only with enclosure option 5)
K Certification for nuclear power plants
R Standard configuration (safe area)
Y Others

2 Enclosure
1 No enclosure
2 Wall mount (IP67) for integrated probe (order probe MDR3-5A22R5 separately)
4 Panel mount 5.7” x 5.7”
5 Wall mount (IP67: NEMA 4X)
7 Explosion-proof wall mount (NEMA 3/4/7/9)
8 Panel mount 5.7” x 5.7”, with door
9 Others

3 Measuring Unit
D RH 0 to 100% and DP temperature -15°C to +75°C (5°F to 167°F)
4 Current Output Configuration
1 0 – 20 mA = % RH/DP user selectable range
1 Dual 0 – 20 mA outputs for moisture (adjustable) and temperature (fixed) -10°C to +90°C (14°F to 194°F)
3 Dual 0 – 20 mA outputs for moisture (adjustable), and temperature (custom range) (Specify range on order)
4 0 – 20 mA, output 2, version K, 0°C to 100°C
5 4 – 20 mA = % RH/DP user selectable range
6 Dual 4 – 20 mA outputs for moisture (adjustable) and temperature (fixed) -10°C to +90°C (14°F to 194°F)
7 Dual 4 – 20 mA outputs for moisture (adjustable), and temperature (custom range) (Specify range on order)
8 4 – 20 mA, output 2, version K, 0°C to 100°C
9 Others

5 Alarm Assignment
D A1 moisture; A2 moisture/temperature/system (for use with 1 output only)
K K version (2 outputs)
S A1 moisture, A2 system with 2 outputs (for use with 1 or 2 outputs)
Y Other

6 Power Supply
1 187 to 278 V AC, 50/60 Hz
2 24 V DC
3 85 to 130 V AC, 50/60 Hz
9 Others
