Model DPG-300 Dew Point Generator

Features:

	General stable dewpoints from -80ºC to +15ºC
	Maintain accuracies of +/- 0.5ºC
	Constant regulated output flow 0 to 5 SCFH
	No electrical power required
	Inherently explosion proof
	Portable

原廠目錄下載 (PDF Format, 1 pages, 116 KB.)
Dew Point Generator, Model DPG-300

SPECIFICATIONS

Generation Method: Divided flow, Plane Surface Saturation
Operating Range: 0ºC to 40ºC

Performance:
Dewpoint Generation Range: -80ºC to +15ºC at 25ºC ambient
Adjustment: Continuous
Repeatability: +/- 0.25ºC
Accuracy: +/- 0.5ºC typical

Hysteresis: None
Response Time: Less than 3 min.
Stability: +/- 0.25ºC
Storage: -40ºC to +50ºC
Output: Constant regulated flow; 0-5 SCFH (0-2.4 litres/min.) Max. unregulated flow: 13 SCFH (6 litres/min.)
Weight: 20 pounds
Input/Output Fittings: 1/4" tubing compression fittings
Input Required: Dry gas less than 115 PPM* (-40ºC dewpoint) 13 SCFH (6 Litres/min.) 30-100 psig

* - Even dryer gas is preferred as the dryness of the inlet gas limits the lowest dewpoint that can be generated.

Accessories:

Model 1500 or Hygro M2 with 1311DR or 1211H Sensor. The setup procedure for the DPG300 allows you to compute the moisture content of your inlet gas utilizing the generator and a precision chilled mirror hygrometer. This dry gas calculation can be made even if the dry gas moisture content is below the range of the dewpoint sensor employed.

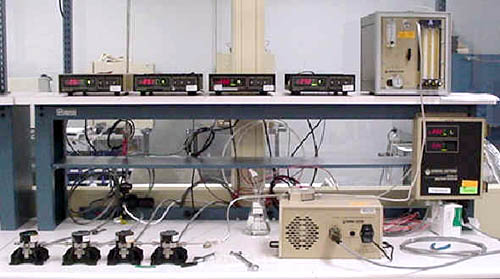

Five Chilled Mirrors are sampling air from a DPG-300 Dew/Frost point generator.

The units read -25.0, -25.1,
-25.1, -25.0 and -25.0°C Frost point respectively; A spread of 0.1°C Frost point.

The D2 Sensors are over 5 years old. The units were sent into our facility for annual calibration service.
