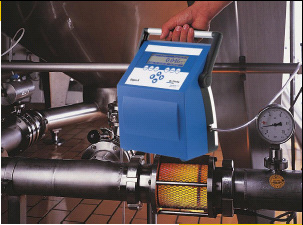

DIGOX 5 - A new dimension in trace oxygen measurement | |||||||||||||||
|
|||||||||||||||
DIGOX WIN
Digox WIN is the PC user software for analysing the measurements and for diagnosis of the measuring instrument. Digox WIN runs under WindowsTM and meets all the requirements of modern data processing in the laboratory : - Read-outs from the data logger - Conversion to ExcelTM - Presentation of the data as tables or graphs
- Simultaneous online presentation and logging of
measurements
|
|||||||||||||||
DIGOX 5 in the lab - Oxygen measuement in bottles and cans Oxygen measurement in bottles and cans is one of the most important measurements for quality assurance in drinks plants. The measurement also provides information about how well the bottling plant is functioning. The Digox 5 provides a system for total oxygen determination in filled bottles and cans which allows the calculation of the total oxygen from just one measurement of the dissolved oxygen. This procedure is based on the method described by K. Uhlig*. Phase parity is established in the sample between head-space and fluid phase with the Thiedig bottle turning device. Once the head space volume has been determined, the dissolved oxygen content is measured with the help of the Thiedig sampling device and the Digox 5. A simple calculation program then supplies the desired value for total oxygen in the sample. Digox WIN allows automation of the analysis through exploitation of its automatic data allocation.
The advantage of the method is its simplicity and the
absolute replicability of the measurements.
|
|||||||||||||||
Technical data |
Analyser | DIGOX 5 type EC portable |
Internal measuring ranges | 4 measuring ranges : approx. 0 - 20 µg/l, 0 - 200 µg/l |
approx. 0 - 2 mg/l, 0 - 20 mg/l | |
Display | 0.001 - 20.000 mg/l, digital in mg/l O2 |
Accuracy | ▽1% based on the measuring range final value |
Recorder measuring ranges | 2 measuring ranges between 0.2 mg/1 and 20 mg/l |
Measuring range I 0.200 - 2.000 mg/l programmable in 0.2 mg/l steps | |
Measuring range II 2.000 - 20.000 mg/l programmable in 2 mg/l steps | |
Data interfaces | RS 232, Option ; RS 485 |
Data logger | for 200 individual measurement values and 1000 values as a series, |
optional: 3000 measurement values as a series | |
intervals for measurements in series are freely programmable | |
Limit values | 4 freely programmable limit values 1 load relay |
Signal outputs | can be set for 0...20 mA or 4...20 mA |
Response time (t=90%) | 10 s |
Permissible ambient temps. | -5 ... +40°C. |
Permissible sample temps | 0 ... 70°C. (compensated up to 50°C.) |
Sample pressure | max. 8 bar |
Sample flow rate | 3 - 18 l/h |
Calibration | fully automatic Thiedig active calibration with autocheck, error message and report |
Power supply | 90 ... 240 VAC power adapter plug., 14 V NiMH-accumulator for approx. 8 hours |
Connected load | 10 VA |
Protective system | IP 65 |
Weight | approx3. 8 kg |
Dimensions | 21.5 x 24 x 9 cm |
|
